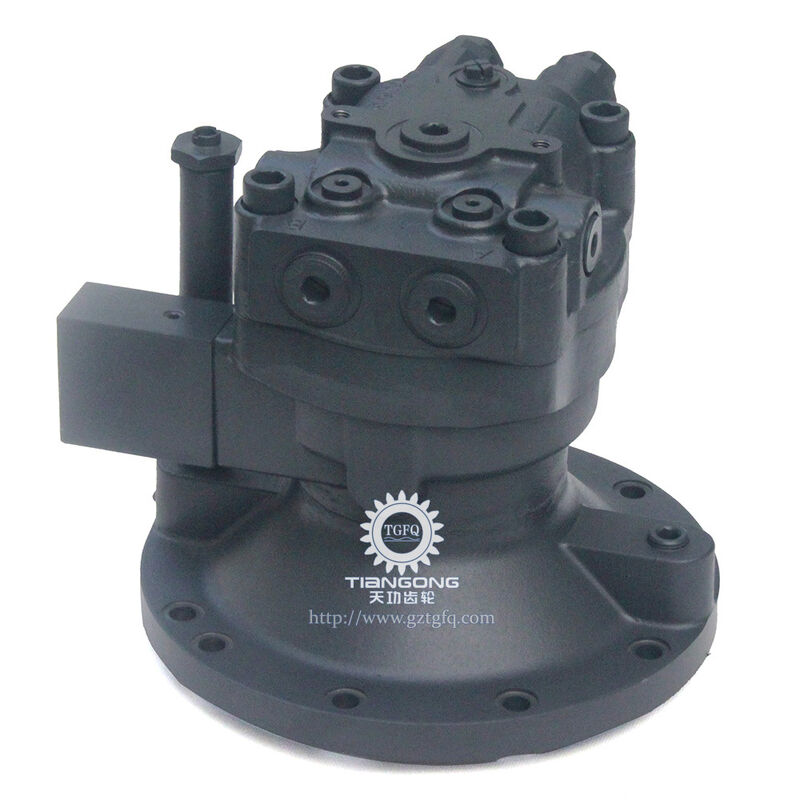

VOE14538545 VOE 14514894 EC170D/EC160B/EC180B Swing motor

Markenbezeichnung:	TGFQ
Modellnummer:	EC170D/EC160B/EC180B
Mindestbestellmenge:	1
Preis:	665.00USD
Verpackungsdetails:	NNER-VERPACKUNG: Verpackung durch Plastikfilm, klarer Aufkleber für jedes Einzelteil. ÄUSSERE VERPAC
Zahlungsbedingungen:	L/c, t/t, d/p, d/a

Detailinformationen

Beschreibung des Produkts

Detailinformationen

Herkunftsort:

China

Kompatible Modelle:

EC170D/EC160B/EC180B

Versorgungsmaterial-Fähigkeit:

50 PCS/Monat

Hervorheben:

Excavator swing motor

EC170D swing motor

EC160B travel motor

Beschreibung des Produkts

VOE14538545 VOE 14514894 EC170D/EC160B/EC180B Swing Motor

VOE14538545 VOE 14514894 EC170D/EC160B/EC180B Swing motor. This component is designed for reliable performance in demanding excavator applications.

Safety Features

Reverse Prevention System

The motor and mounting group incorporates a built-in reverse-prevention valve that eliminates unintended reverse rotation, preventing operational errors and safety hazards.

One-way valve design ensures hydraulic oil flows in only one direction
Prevents motor reversal due to external forces or hydraulic fluctuations

This safety feature is critical during heavy lifting operations where reverse rotation could cause load drops and serious accidents. The high-flow capacity valve maintains normal motor operation and response speed while providing reliable performance under high hydraulic pressure and frequent use conditions.

Product Specifications

Compatible Models	EC170D/EC160B/EC180B
Category	Excavator Swing Hydraulic Motor
Brand	TGFQ
Part Numbers	VOE14538545 VOE 14514894
Packing	Wooden case
Delivery Time	1-3 days after payment confirmation
Shipping Methods	By Sea, Air, or Express

Quality Assurance

Each unit undergoes thorough inspection and detailed photos are provided for buyer confirmation before shipping to ensure product quality and satisfaction.

Hydraulic Motor Applications

Hydraulic motors are essential components in earthmoving equipment including excavators, backhoe loaders, skid-steer loaders, forklifts, heavy dump trucks, and bulldozers. They power hydraulic cylinders that extend and retract during various operational cycles.

Swing Brake Operation

The swing brake features a multi-disc and plate assembly located in the first stage planetary gear. This spring-applied, hydraulically-released system functions as a parking brake and is not designed for cyclic service braking. Discs and plates are lubricated by the release signal oil for optimal performance and longevity.

Product Images

Travel Motor Parts Breakdown

Parts List - Assembly 1

#	Part No.	Description	8278378
	VOE 14514894	Motor	1
1	SA 8230-04420	Race	1
2	SA 8220-15630	Seal	1
3	SA 8230-00790	Roller Bearing	1
4	SA 8230-04320	Spring	1
5	SA 8230-04360	Plate	1
6	SA 8230-04410	Plate	1
7	VOE 14519350	Piston	9
8	SA 8230-22900	Plate	3
9	SA 8230-22910	Plate	3
10	SA 8230-25140	O-ring	1
11	SA 8230-25530	O-ring	2
12	SA 8230-04230	Spring	10
13	SA 8230-31150	Pin	2
14	SA 9511-12011	O-ring	3
15	SA 8230-01160	Cap	3
16	SA 8230-04240	Spring	4
17	SA 8230-00890	Seal	4
18	SA 8230-04330	Bushing	4
19	SA 8230-03990	Plate	1
20	SA 8230-00820	Needle Bearing	1
21	VOE 14519351	Piston	1
22	SA 8230-01030	Ring	1
23	VOE 14508587	Cylinder	1
24	VOE 14508589	Housing	1
25	SA 8230-23350	Plug	1
26	VOE 14508590	Valve	2
27	SA 9566-10180	Ring	1
28	SA 9511-12012	O-ring	1
29	SA 9511-12018	O-ring	1
30	VOE 14508591	Cover	1
31	SA 8230-04180	Valve	1
32	SA 8230-00610	Bolt	3
33	SA 8230-11610	Cap	2
34	SA 9566-10260	Ring	2
35	SA 9511-12026	O-ring	4
36	SA 8230-12860	Spring	2
37	SA 8230-11110	Check valve	2
38	VOE 14508592	Relief valve	2
39	SA 8230-00600	Bolt	4
100	VOE 14509452	Sealing Kit	1
43	199-4582	Bearing AS	3
44	095-0891	Pin-Spring	7
45	096-3216	Setscrew-Socket (M12X1.75X12-MM)	2
46	3E-2338	Plug-Pipe (Final Drive, Oil Drain, Fill)	2
47	6V-8133	Bolt (M24X3X80-MM)	12
48	7Y-1484	Spacer (191X221X8.5-MM Thk)	1
49	7Y-1492	Spacer (67X101.1X10-MM Thk)	2
50	8C-5240	Seal-O-Ring	1
51	8T-3957	Bolt-Socket Head (M12X1.75X30-MM)	10
52	8T-4167	Washer-Hard (26X44X4-MM Thk)	20
53	8T-4240	Ring-Retaining	3
54	1U-8846	Sealant-Gasket

Warehouse & Inventory Capacity

Our facility includes over 4000 square meters of three-dimensional warehouse space plus 2000 square meters of outdoor storage, ensuring adequate inventory levels and rapid response to customer requirements. Fast delivery is our competitive advantage.

Frequently Asked Questions

Can I order a sample for testing first?

Yes, we welcome sample orders for testing and evaluation.

How do I place an order?

Simply provide the model and quantity you need. We will issue a proforma invoice, and upon payment confirmation, your order will be processed. Preparation time varies based on order complexity.

Do you have your own factory?

Yes, we operate our own manufacturing facility with 23 years of specialized experience in the excavator gear industry.
